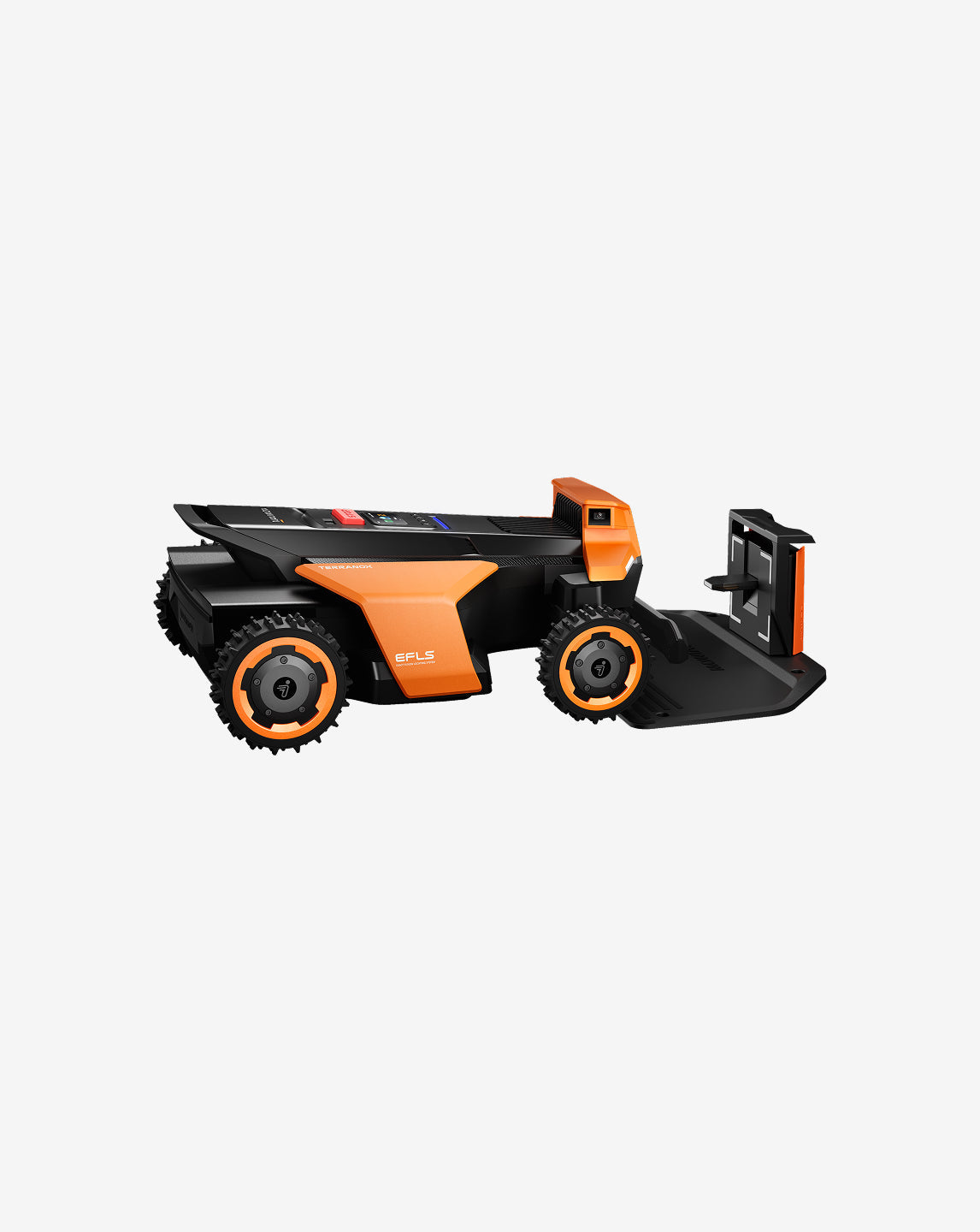

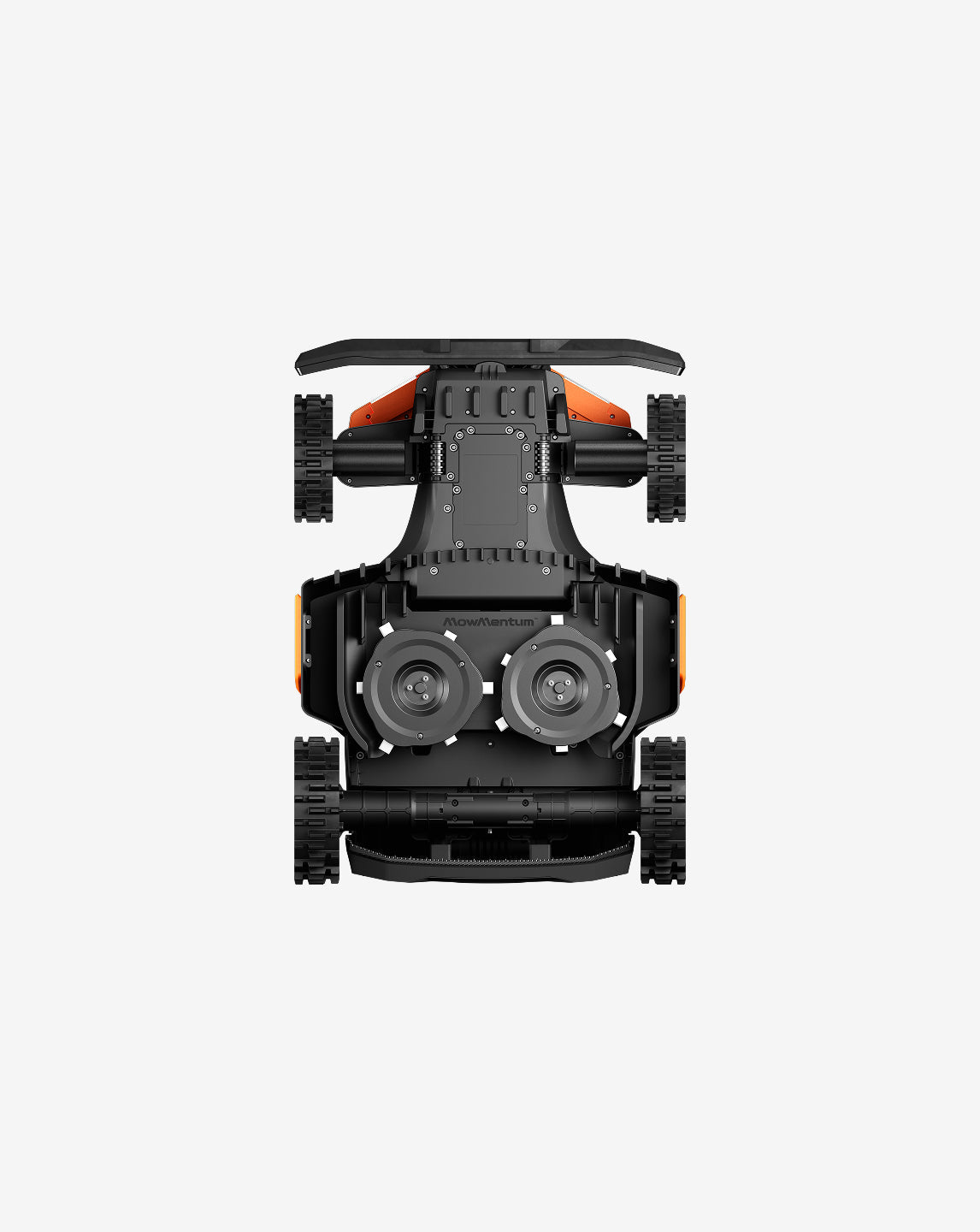

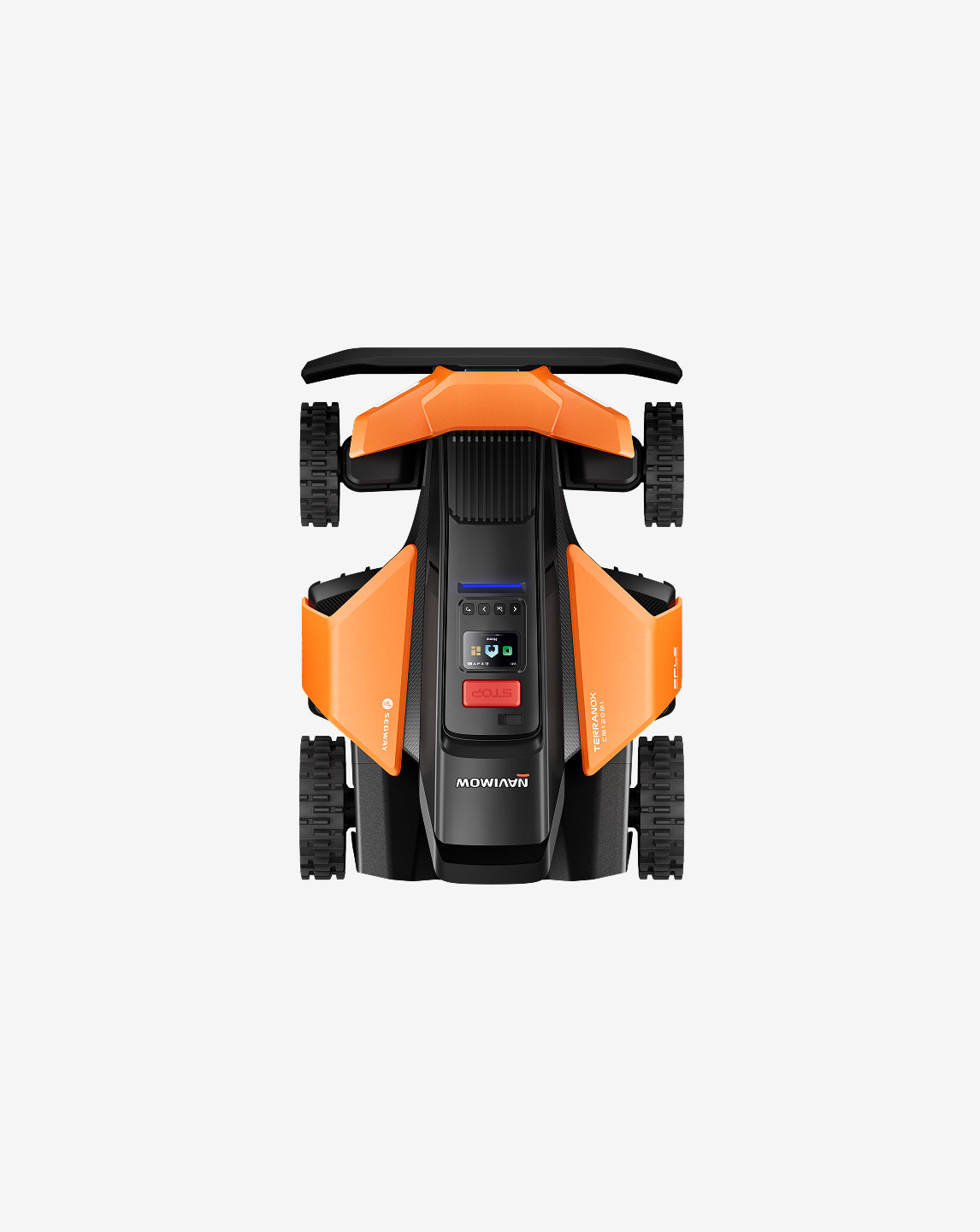

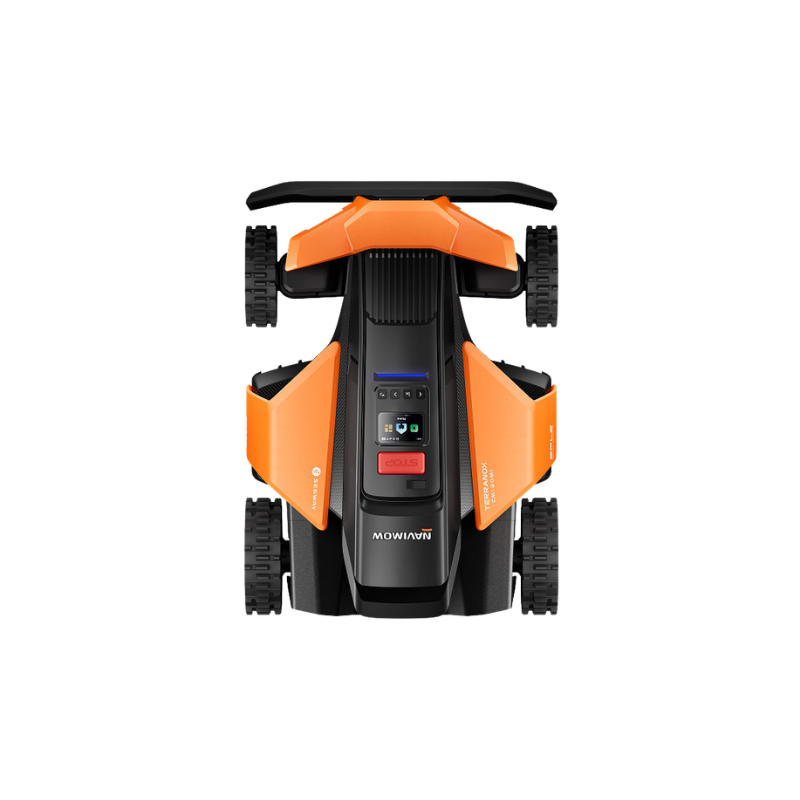

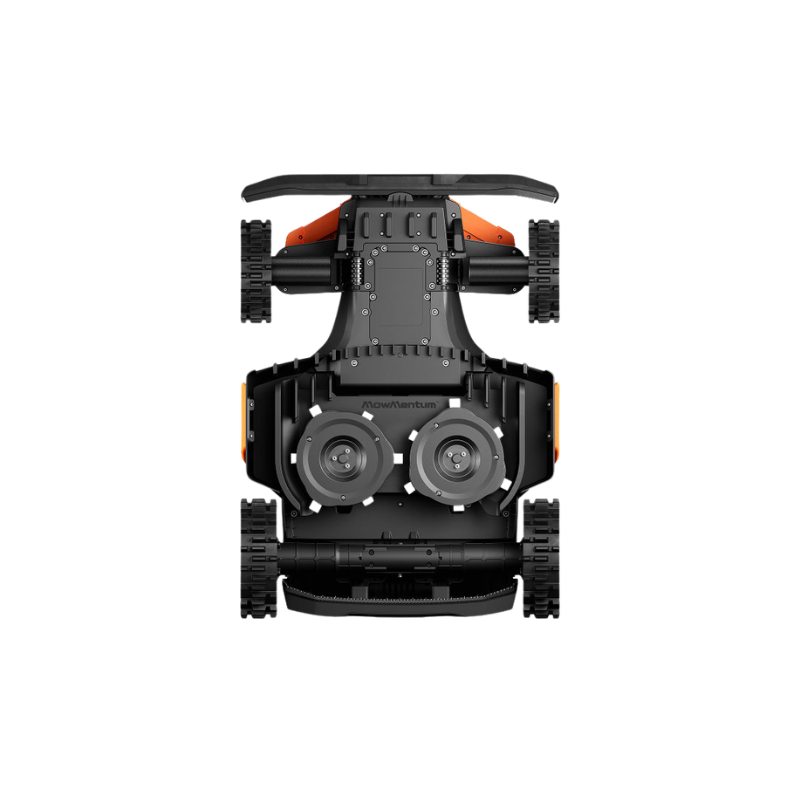

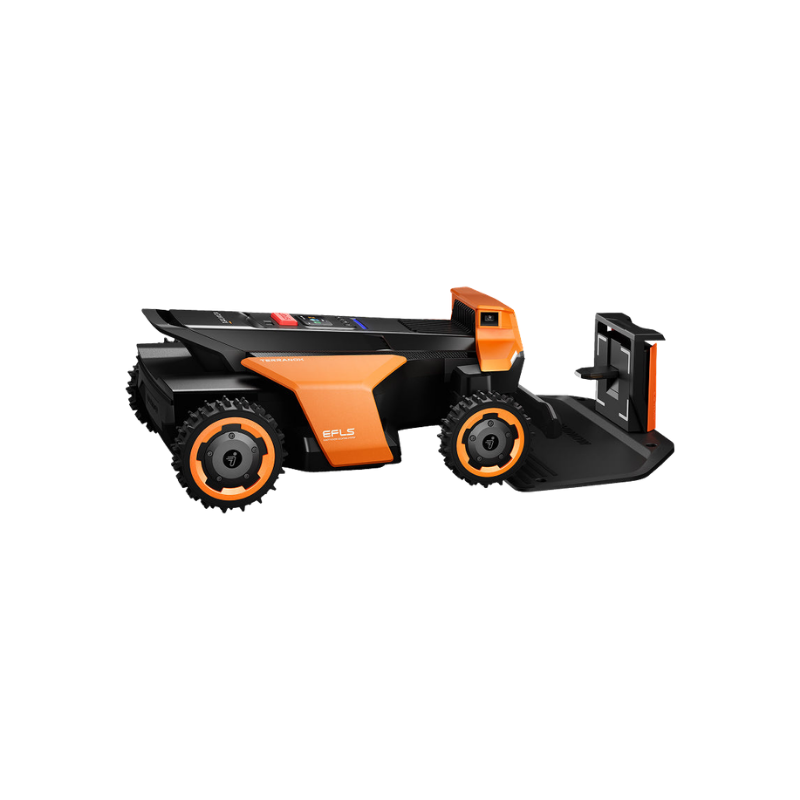

Segway Navimow Terranox CM120M1
Description
- Designed for large-scale/commercial mowing
- Wire-free setup (no boundary wire or antenna required)
- EFLS™ navigation (NRTK + Vision + VIO)
- VisionFence obstacle avoidance
- AWD system (handles slopes up to 40°
- 43cm cutting width
- Dual motors, dual deck, 12 blades
Performance:
- 145 min runtime - 0.8M/S
- Quiet operation (68 dB)
- Zero emissions
- Fleet management via web app (NavimowFleet™)
- Ideal for large properties, schools, commercial sites.
COMING SOON
Segway Navimow Terranox CM120M1
Sale price$14,999.00
Regular price
(/)
Product Specifications
| Specification | Segway Navimow Terranox CM120M1 This model | Husqvarna Automower® 450X NERA | Segway Navimow X315 | Segway Navimow X330 | Segway Navimow X350 | Segway Navimow X390 | Husqvarna Automower® 410XE NERA | Husqvarna Automower® 310E NERA | Husqvarna Automower® 305E NERA | Husqvarna Automower® 560 EPOS® | Segway Navimow X430 | Segway Navimow X450 | Segway Navimow Terranox CM120M1 | Segway Navimow Terranox CM240M1 | Segway Navimow i206 AWD | Segway Navimow i210 AWD | Segway Navimow H215 | Segway Navimow H230 | Husqvarna Automower® 435 iQ AWD | Husqvarna Automower® 420 iQ | Husqvarna Automower 580 EPOS | Husqvarna Automower 540 EPOS™ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Recommended mowing area | 12000m² | 5000m² | 1500m² | 3000m² | 5000m² | 10,000m² | 1000m² | 1000m² | 600m² | 12,000m² | 3000m² | 5000m² | 12000m² | 24000m² | 600m² | 1000m² | 1500m² | 3000m² | 5000m² | 4,000m² | 16,000m² | 8,000m² |
| Multi-zone management | 120 | 20 | 120 | 120 | 120 | 120 | 20 | 20 | 20 | 20 | 120 | 120 | 120 | 120 | 20 | 20 | 30 | 30 | 20 | 20 | 20 | 20 |
| Max slope ability | 40º | 27º | 27º | 27º | 27º | 27º | 16º | 16º | 16º | 27º | 40º | 40º | 40º | 40º | 24º | 24º | 24º | 24º | 35º | 24º | 24º | 27º |
| Max slope performance at boundary | 40º | 14º | 14º | 14º | 14º | 14º | 12º | 12º | 12º | 12º | 40º | 40º | 40º | 40º | 24º | 24º | 14º | 14º | 27º | 9º | 12º | 12º |
| Driving engine | 4 All Wheel Drive + Dual Independent Steering Motors | 2 Rear-Wheel Drive | 2 Rear-Wheel Drive | 2 Rear-Wheel Drive | 2 Rear-Wheel Drive | 2 Rear-Wheel Drive | 2 Front-Wheel Drive | 2 Front-Wheel Drive | 2 Front-Wheel Drive | 2 Rear-Wheel Drive | 4 All Wheel Drive + Dual Independent Steering Motors | 4 All Wheel Drive + Dual Independent Steering Motors | 4 All Wheel Drive + Dual Independent Steering Motors | 4 All Wheel Drive + Dual Independent Steering Motors | 3 All Wheel Drive | 3 All Wheel Drive | 2 Rear-Wheel Drive | 2 Rear-Wheel Drive | 4 All Wheel Drive | 2 Rear-Wheel Drive | 2 Rear-Wheel Drive | 2 Rear-Wheel Drive |
| Antenna setup | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Yes | Optional | Optional | Optional | Optional | Optional | Optional | No | No | Optional | Optional | Yes | Yes |
| Net weight (kg) | 29.60kg | 14.5kg | 19.6kg | 19.8kg | 19.8kg | 19.9kg | 12.1kg | 12.2kg | 12.2kg | 17.3kg | 28.9kg | 29.2kg | 29.60kg | 29.95kg | 12.05kg | 12.30kg | 16kg | 16.25kg | 18.1kg | 18.6kg | 17.6kg | 16.7kg |
| Cutting width | 43cm | 24cm | 23.7cm | 23.7cm | 23.7cm | 23.7cm | 22cm | 22cm | 22cm | 26cm | 43cm | 43cm | 43cm | 43cm | 18cm | 18cm | 22cm | 22cm | 22cm | 24cm | 26cm | 26cm |
| Cutting height | 20-95mm | 20-60mm | 20-70mm | 20-70mm | 20-70mm | 20-70mm | 20-55mm | 20-55mm | 20-55mm | 20-60mm | 20-95mm | 20-95mm | 20-95mm | 20-95mm | 20-60mm | 20-60mm | 20-70mm | 20-70mm | 30-70mm | 25-100mm | 20-60mm | 20-60mm |
| Number of cutting discs | 2 discs | 1 discs | 1 discs | 1 discs | 1 discs | 1 discs | 2 discs | 2 discs | 2 discs | 1 discs | 2 discs | 2 discs | 2 discs | 2 discs | 1 discs | 1 discs | 1 discs | 1 discs | 1 discs | 1 discs | 1 discs | 1 discs |
| Battery capacity | 20 Ah | 7.5 Ah | 6 Ah | 8 Ah | 10 Ah | 12.8 Ah | 2.2 Ah | 2 Ah | 2 Ah | 8 Ah | 12.8 Ah | 15 Ah | 20 Ah | 25 Ah | 2.55 Ah | 5.1 Ah | 7.65 Ah | 10 Ah | 8 Ah | 5 Ah | 8 Ah | 4 Ah |
| Mowing area per charge | 1500m² | — | 600m² | 800m² | 1200m² | 1400m² | — | — | — | — | 900m² | 1300m² | 1500m² | 2000m² | 125m² | 250m² | 595m² | 770m² | — | — | — | — |
| Max mowing area per day | 7200m² | — | 4000m² | 4500m² | 5500m² | 5500m² | — | — | — | — | 3000m² | 5000m² | 7200m² | 8000m² | 1500m² | 1500m² | 3300m² | 3800m² | — | — | — | — |
| Charging time | 145 min | 40 mins | 60 min | 65 min | 80 min | 100 min | 90 mins | 40 mins | 40 mins | 55 mins | 90 min | 100 min | 145 min | 180 min | 60 min | 120 min | 90 mins | 120 min | 45 mins | 54 mins | 55 mins | 55 mins |
| Mowing time per charge | 145 mins | 145 mins | 120 mins | 160 mins | 200 mins | 240 mins | 100 mins | 50 mins | 50 mins | 150 mins | 110 mins | 130 mins | 145 mins | 180 mins | 60 mins | 120 mins | 170 mins | 220 mins | 145 mins | 84 mins | 120 mins | 85 mins |
| Object detection system | 360º RGB Camera+ ToF | RADAR | 300º RGB Camera+ ToF | 300º RGB Camera+ ToF | 300º RGB Camera+ ToF | 300º RGB Camera+ ToF | RADAR | NO | NO | RADAR | 360º RGB Camera+ ToF | 360º RGB Camera+ ToF | 360º RGB Camera+ ToF | 360º RGB Camera+ ToF | 140º RGB Camera | 140º RGB Camera | 140º RGB Camera + LIDAR | 140º RGB Camera + LIDAR | Ultrasonic | RADAR | RADAR | RADAR |
| Object avoidance | Vision Fence + ToF | NO | Vision Fence | Vision Fence | Vision Fence | Vision Fence | NO | NO | NO | NO | Vision Fence + ToF | Vision Fence + ToF | Vision Fence + ToF | Vision Fence + ToF | Vision Fence | Vision Fence | Vision Fence + LIDAR | Vision Fence + LIDAR | NO | NO | NO | NO |
| GPS theft tracking | YES | YES | YES | YES | YES | YES | No | No | No | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Cellular network | Built In | Built In | Built In | Built In | Built In | Built In | Optional | Optional | Optional | Built In | Built In | Built In | Built In | Built In | Built In | Built In | Built In | Built In | Built In | Built In | Built In | Built In |
Swipe the table sideways to see more →
